Gratings


Grating is a structural element that has a high load-bearing capacity with a low dead weight and a
high level of transparency. The positive-fitting connection of the bearing bars and cross bars with
the surround make the grating not only a very stable, but also visually attractive product. The applications are very diverse, as grating is used everywhere in industry and architecture. As an extremely robust, safe yet light platform flooring, the grating is indispensable in all areas of heavy industry.

Gratings are supplied as per the drawings provided by client or in standard sizes.

  • Product Offered: Grating Panels, Stair Treads, Handrail Systems, Ladder Cages, Panel Clips, Heavy Duty “Safe Grate”, Trench Grating, GRP Gratings.
  • Finish: We can provide finish in either mill, painted black, or galvanized.
  • Brand: Lionweld Meiser
  • Grating Panels
  • Stair Treads
  • Handrail System
  • Ladder Cages
  • Panel Clips
  • Heavy duty “Safe Grate” Trench Grating
  • GRP Gratings

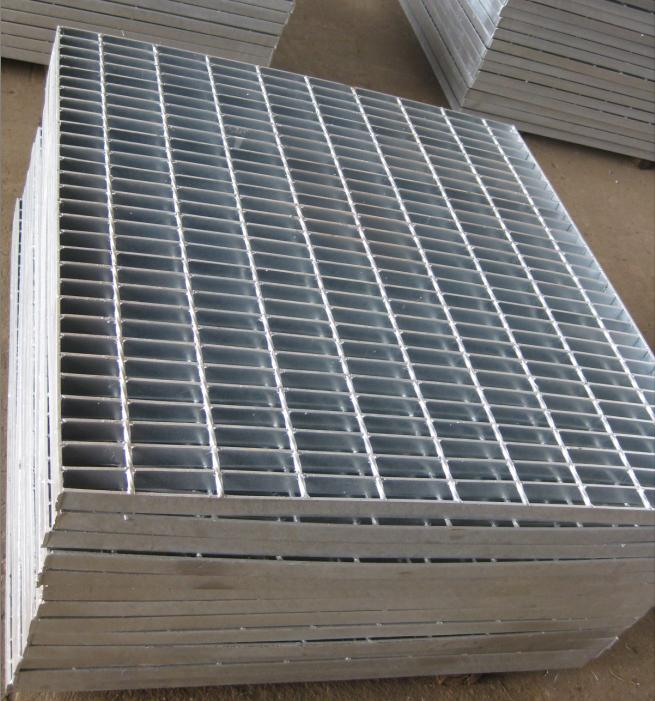

Constructed from a series of flat load bearing bars, either 3, 4, 5 and 6mm thick at 17, 20.5, 25, 30, 34, and 41mm centers, to which traverse bar sections are electro-forged – welded into the top surface. Available with 5.4, 6, 6.4 & 8mm crossrods.

Gratings are fabricated and supplied as per the drawing or in standard size

Manufacure – LionweldMeiser
